Thermal Grease KP 12, silicone free - MH&W Thermal Products

Thermal Grease KP 12 silicone freeThe silicone free thermal compound KP 12 consists of a synthetic thermal polymer and is suitable for fast and effective heat dissipation. The paste is particularly suitable for silicone sensitive applications.

See Also: Keratherm Thermal Grease KP 96, KP 97, KP 98
See Also: Keratherm Silicone Free Films

Applications

  • notebooks
  • desktop CPU’s
  • IGBT units

Storage

  • non-specific conditions required
  • normal climatic environment
  • 12 month storage

Packing Unit

  • Syringes of 3, 5 and 10 ml
  • Metal Cans with 1, 5 and 20kg
  • Property Symbol Unit KP 12
    silicone-free
    Color silver
    Consistency soft/paste
    Thermal Properties
    Thermal Resistance Rth K/W 0.006
    Thermal Impedance Rti °Cmm²/W
    Kin²/W
    2.2
    0.0033
    Thermal Conductivity λ W/mK 10.0
    Electrical Properties
    Electrical Conductivity pS/m 53
    Mechanical Properties
    Measured Thickness (±10%) mm 0.030
    Density ρ g/cm³ 1.4
    Viscosity Pas 60 – 90
    Application Temperature °C -60 to +150
    Long Term Stability ( 1000h / 85°C / 85% relative humidity )
    Thermal Resistance Rth K/W 0.006
    Total Mass Loss TML Ma.-% < 0.1

    Mix paste before use to avoid particular separation effects.

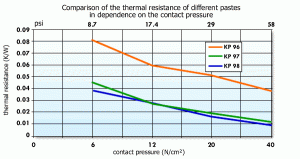

  • (Click for full-size)
