CSC TC-M Series - MH&W Thermal Products

Liquid Gap Filler

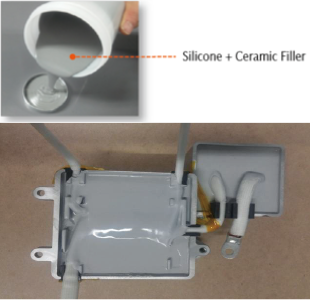

TC-M materials from CSC are a two component silicone that cures in place. This type of material is perfect to seal in components for use in environmentally challenging applications.

  • Good thermal performance
  • Act as shock absorber and damping material
  • High electrical insulating characteristics


  • OBC (on-board charger) for EV and HEV
  • Converter for fuel cells
  • Inverter for solar cells
  • Property Symbol Unit TC-M10 TC-M20
    Color grey grey
    Base Polymer Silicone
    Thermal Properties
    Thermal Conductivity λ W/mK 1.0 2.0
    Electrical Properties
    Dielectric Breakdown Voltage kV > 5
    Volume Resistivity Ωcm 1013
    Mechanical Properties
    Density g/cm3 2.1 2.65
    Hardness Shore 00 75 80
    Physical Properties
    Mixing Ratio (A : B) 1:1 1:1
    Viscosity cps 10,000 15,000
    Curing Condition ºC/min 120 / 30 120 / 30
    Flame Class UL94 V0 [File No.: E258204]
