Softtherm 86/525 and 86/600Group of highly thermally conductive Softtherm films. These films are characterized by low thermal transitions with good dielectric behavior and a good compressibility.

With its outstanding thermal conductivity and very good compressibility the film is very well suited for these types of applications. The material’s good formability reduces mechanical stress on the power components.

Both materials are optionally available with an one-sided adhesive as 86/525K and 86/600K.

Possible Thickness:
86/525: 0.5mm – 3.0mm
86/600: 0.5mm – 1.5mm (EOL)

Applications

  • Automotive
  • Stress Sensitive Components
  • LED Applications
  • Computer Technology
  • Property Symbol Unit 86/525 86/600 (EOL)
    * – Youngs Modulus sample size 30x30x2.5mm3;- variable contact pressure;- compression 50% of measured thickness;
    Color violet gray
    Thermal Properties
    Thermal Resistance Rth K/W 0.22 0.20
    Thermal Impedance Rti °Cmm²/W
    Kin²/W
    89
    0.14
    80
    0.12
    Thermal Conductivity λ W/mK 5.5 6.0
    Electrical Properties
    Breakdown Voltage Ud;ac kV 1.25 1.5
    Dielectric Breakdown Ed;ac kV/mm 2.5 3.0
    Volume Resistivity Ωm 16×1013 1.7×1010
    Dielectric Loss Factor tan δ 1 1.0×10-3 2.5×10-3
    Dielectric Constant εr 1 2.7 2.5
    Mechanical Properties
    Measured Thickness (±10%) mm 0.5 0.5
    Hardness Shore 00 50 – 65 60 – 75
    Youngs Modulus* N/cm² 99 77
    Physical Properties
    Density  ρ g/cm3 1.18 1.28
    Application Temperature °C -40 to +180 -60 to +180
    Single-side Adhesive optional
    86/525K
    optional
    86/600K
    Assembling single-layer
    w/o fiberglass
    single-layer
    w/o fiberglass
    Flame Class UL 94V-0 94V-0
    Total Mass Loss TML Ma.-% < 0.35 < 0.40

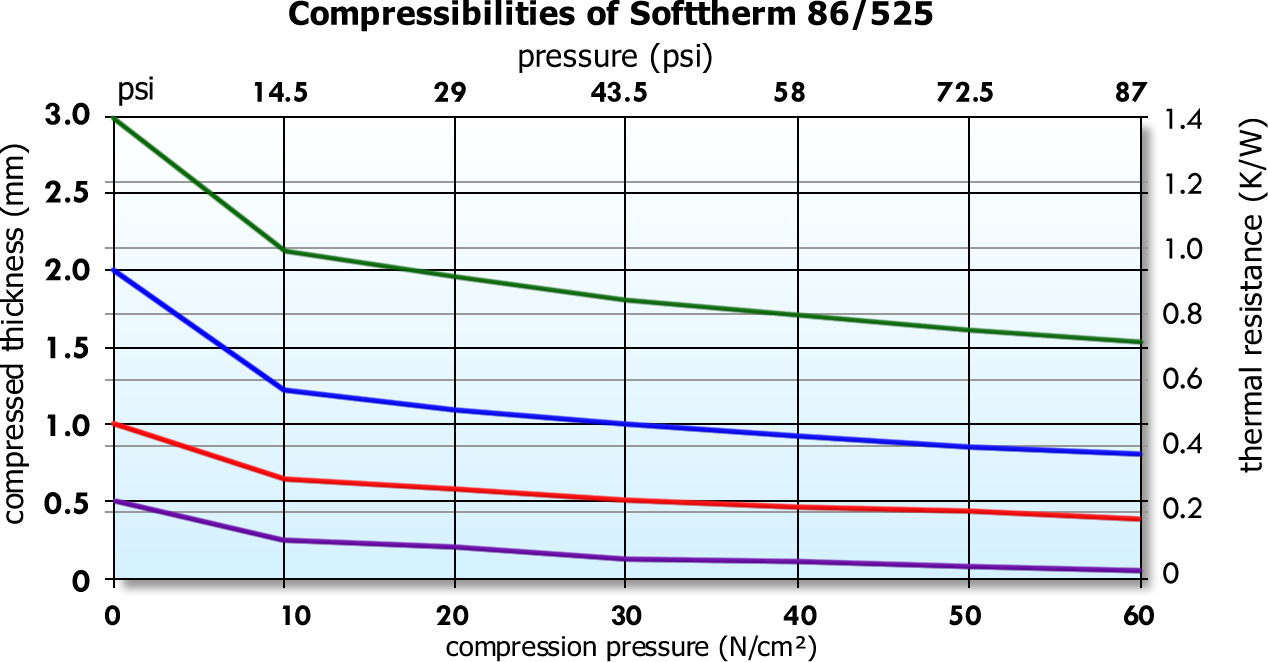

  • Softtherm 86/525 GraphSofttherm 86/600 Graph
